Project: Freeze Quench System

Department: Chemistry and Biochemistry

Primary Investigator: Dr. David Tierney

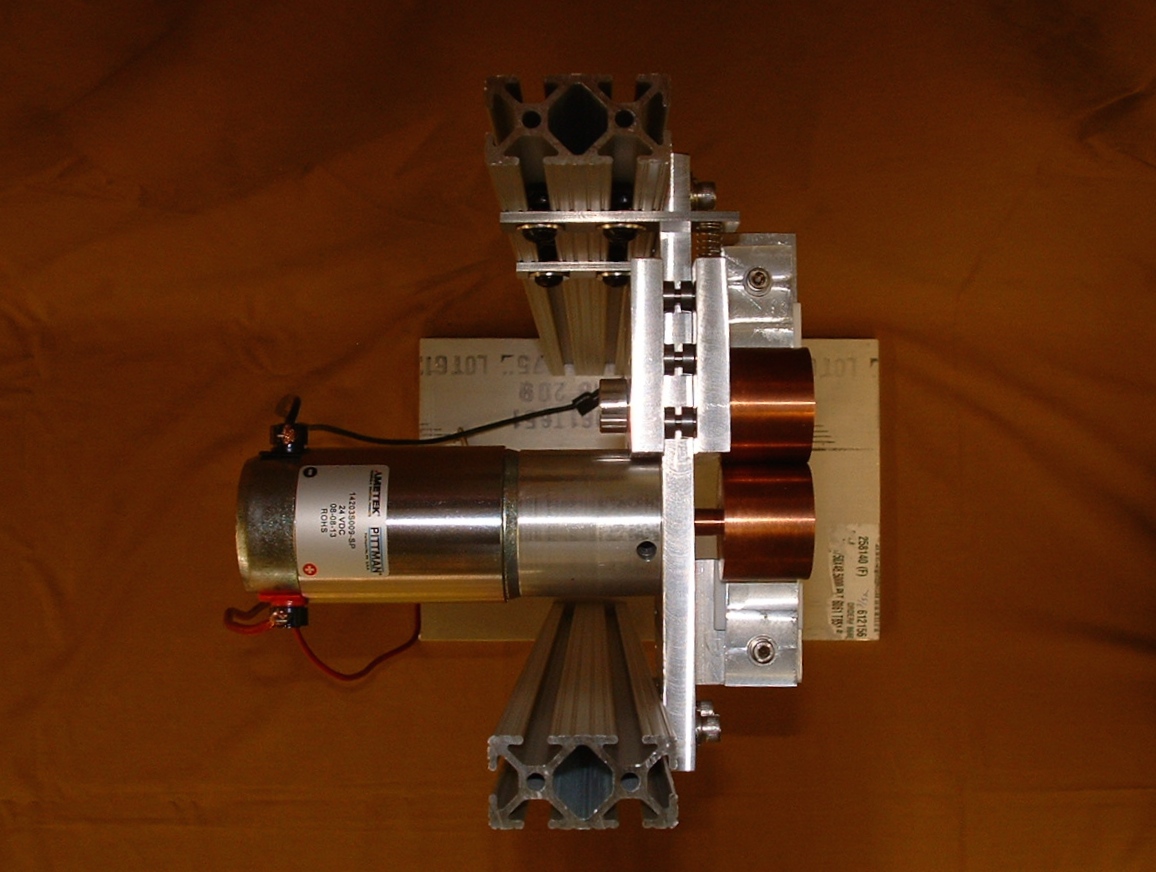

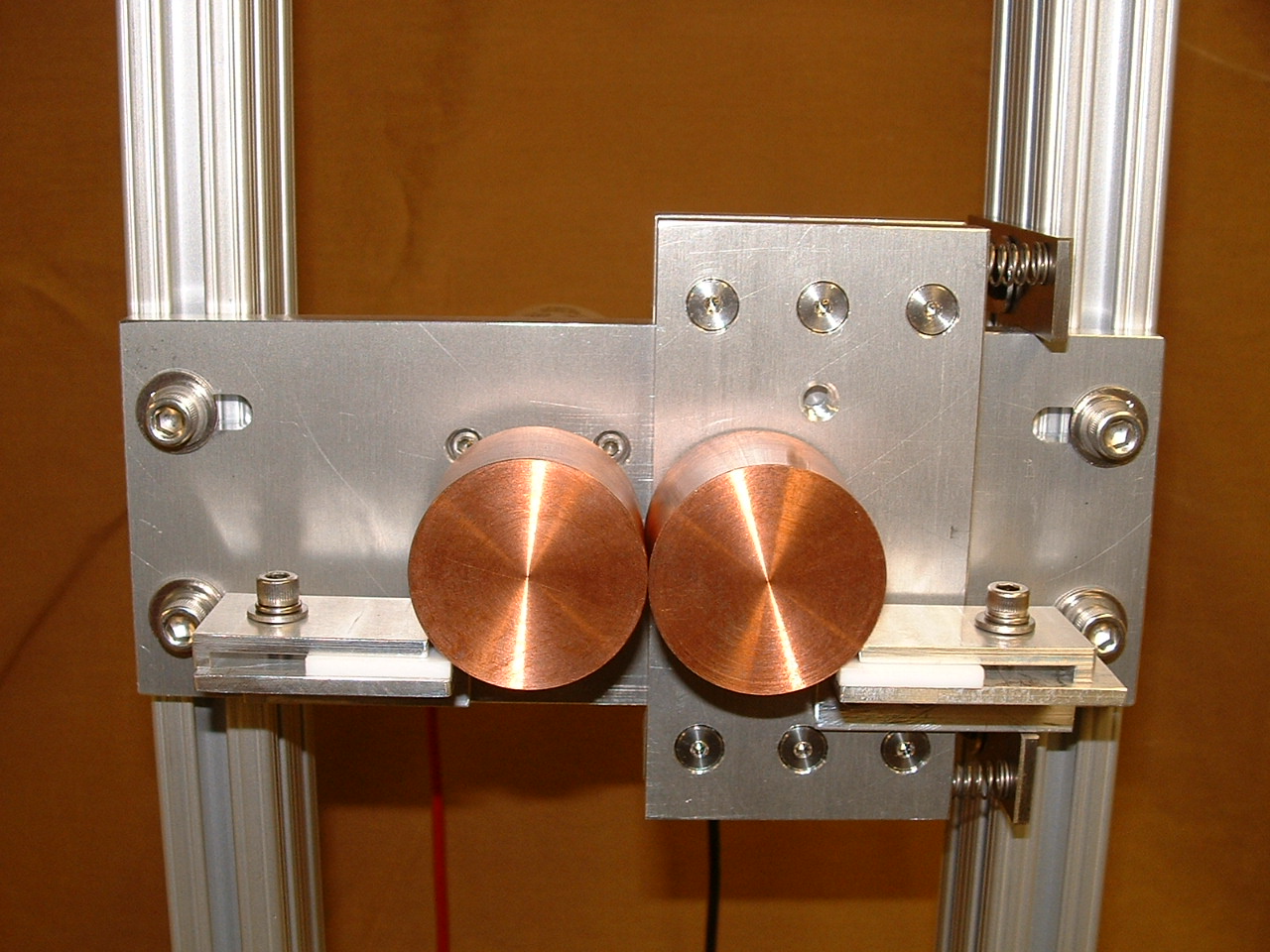

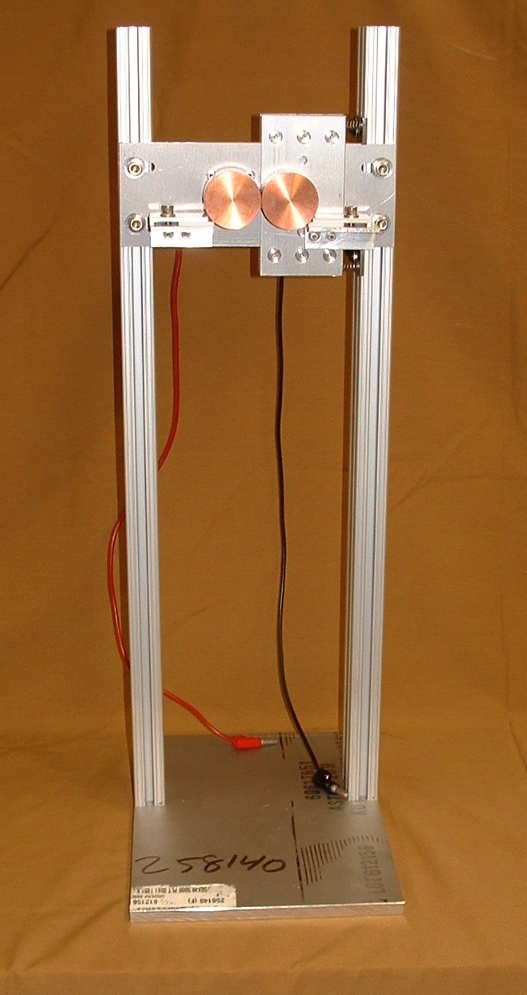

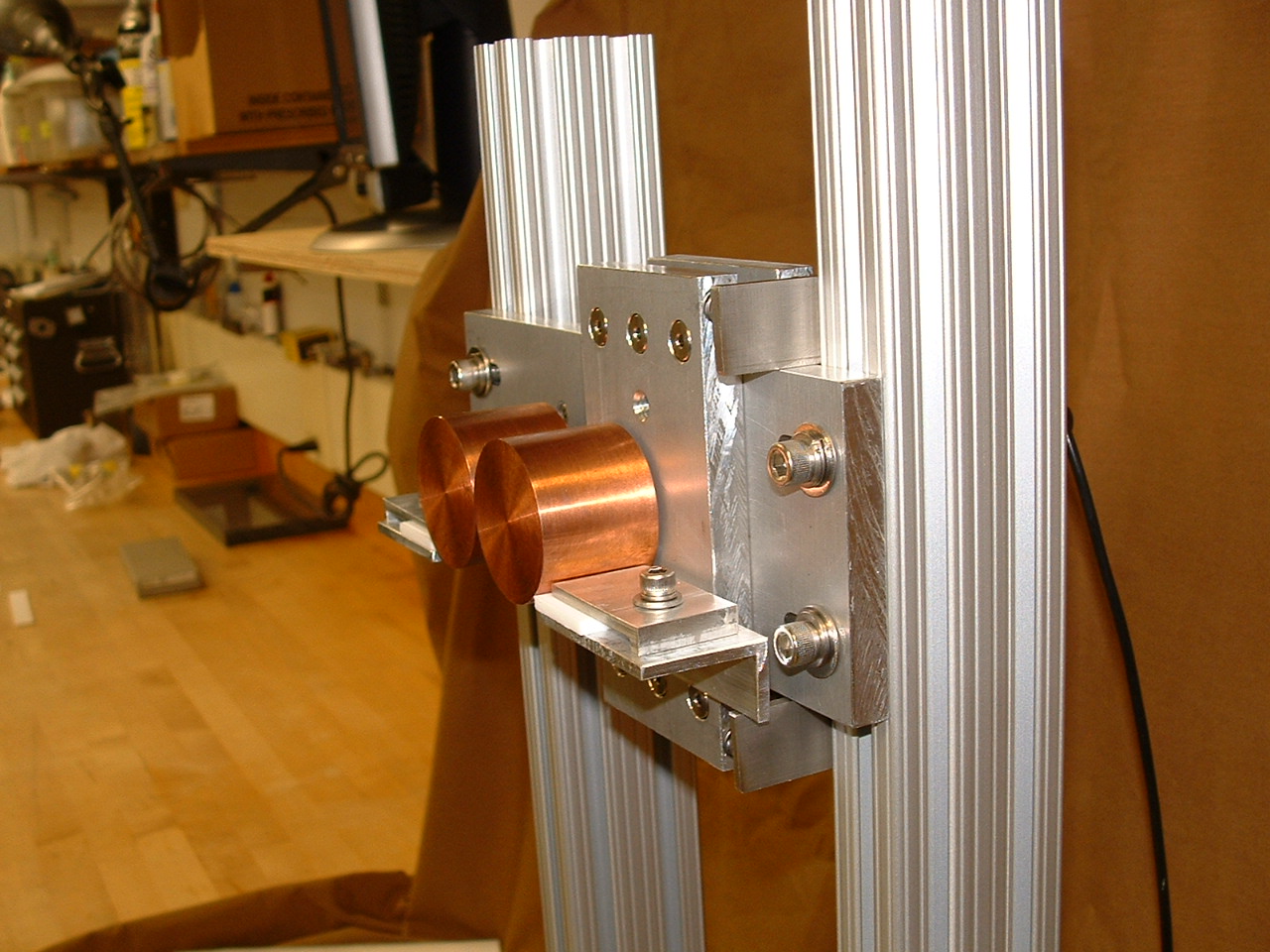

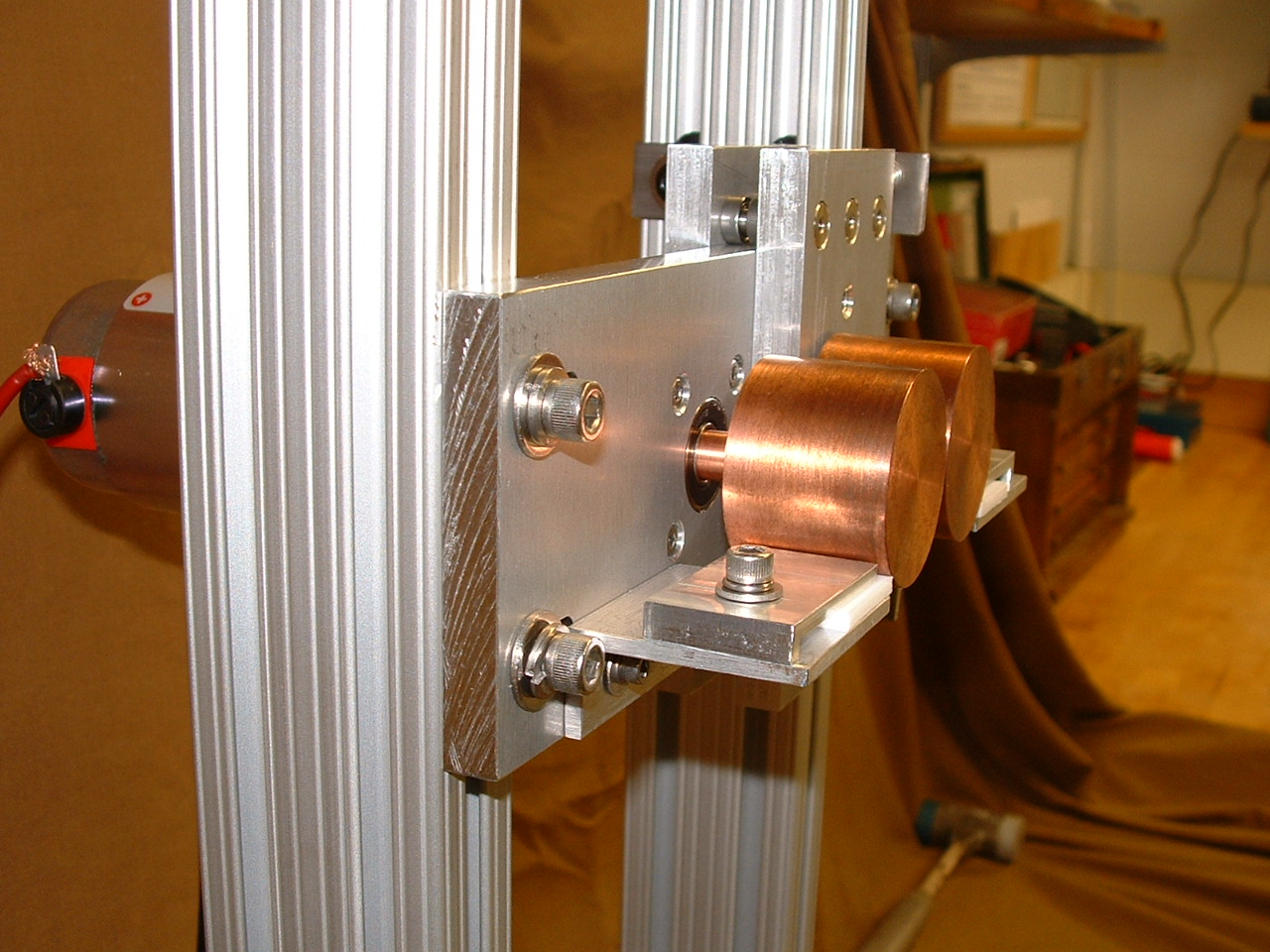

Purpose: The freeze-quench apparatus was built to be able to stop chemical reactions on very short timescales (< 1 ms). Reactants are mixed externally and sprayed onto the counter-rotating copper wheels, which are kept at 77 K, freezing the reaction mixture on contact. The counter-rotating wheels allow us to easily vary the mixing time prior to freezing, and ensures instantaneous and uniform freezing. It is primarily used for the study of enzymatic reactions, with the purpose of stopping the reaction at various times, and then studying the frozen reaction mixture using spectroscopy. Samples for spectroscopy are collected beneath the wheels in a funnel immersed in liquid nitrogen, and the funnels are easily modified to mount different sample holders.

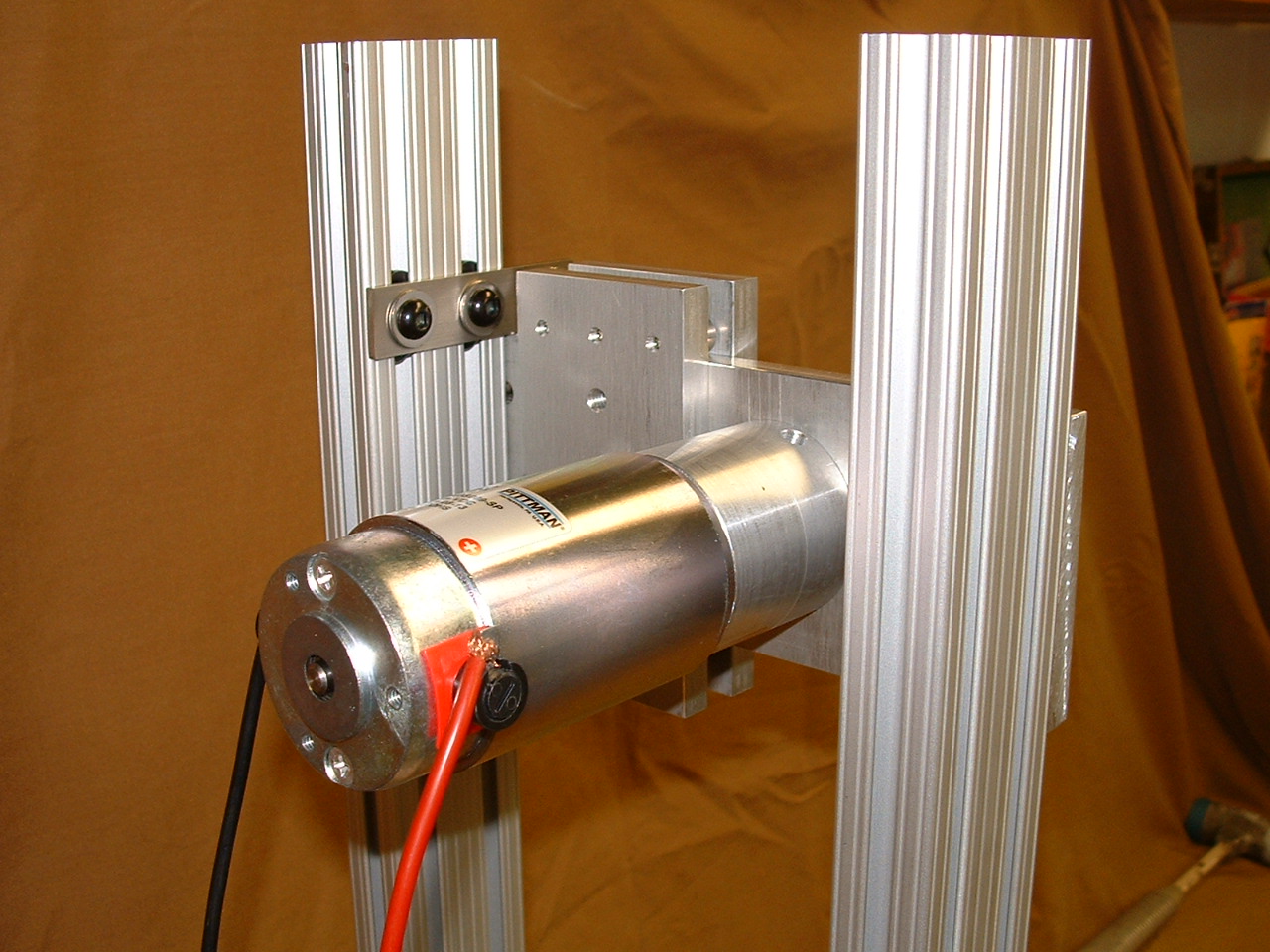

IL Comment: The biggest challenge in designing this system was designing it so that the secondary wheel kept tension against the drive wheel, but at the same time could move as there was ice/sample buildup on the two wheels. Also designing the "scrappers" setup so to keep the wheels clean and to catch the frozen sample before it went between the wheels again. Also, after seeing the examples provided by the user, added a bushing between the motor and the drive wheel to reduce noise and vibration.

Cost to researcher: $474.38
